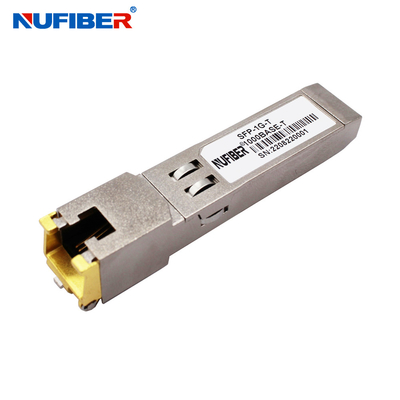

1.25 Gigabit Ethernet SFP Module 100m Rj45 SFP Transceiver Copper Module
GLC-T10/100/1000 copper SFP transceiver is high performance, cost effective module compliant with the Gigabit Ethernet and 10/100/1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 10/100/1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The GLC-T10/100/1000 supports 10/100/1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The GLC-T10/100/1000 provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2-wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2-wire serial bus at address ACh.
Features
Applications
Optical Parameters
| Parameter | Symbol | Min. | Typical | Max. | Units | Notes/Conditions |
| Supply Current | Is | 320 | 375 | mA | 1.2W max power over full range of voltage and temperature. See caution note below | |
| Input Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | Referenced to GND |
| Surge Current | Isurge | 30 | mA | Hot plug above steady state current. See caution note |
| Parameter | Symbol | Min. | Max. | Units | Notes/Conditions |
| SFP Output LOW | VOL | 0 | 0.5 | V | 4.7k to 10k pull-up to host_Vcc. |
| SFP Output HIGH | VOH | host_Vcc -0.5 | host_Vcc + 0.3 | V | 4.7k to 10k pull-up to host_Vcc. |
| SFP Input LOW | VIL | 0 | 0.8 | V | 4.7k to 10k pull-up to Vcc. |
| SFP Input HIGH | 2 | Vcc + 0.3 V | V | 4.7k to 10k pull-up to Vcc. |
| Transmission Line-SFP | ||||||
| Parameter | Symbol | Min. | Typical | Max. | Units | Notes/Conditions |
| Line Frequency | fL | 125 | MHz | 5-level encoding, per IEEE 802.3 | ||
| Tx Output Impedance | Zout,TX | 100 | Ohm | Differential | ||
| Rx Input Impedance | Zin,RX | 100 | Ohm | Differential | ||
