| MOQ: | 1 piece |
| Standard Packaging: | 10 pcs per carton, carton size: 452*372*297mm |
| Delivery Period: | 1-3 work days |
| Payment Method: | T/T, Western Union,Credit Card. |
| Supply Capacity: | 2000 pcs per month |
10/100Mbps 1BNC+4LAN (Slave) Ethernet over Coaxial Extender 2KM
NF-1804T (1BNC+4LAN) is a new active network extender device that based on EOC technology. In practical project, need one set NF-1804T work with 1~4sets NF-1801 to extend Ethernet signal through UTP cable, telephone line, coaxial cable and so on, max transmission distance up to 1500m, max communication rate up to 100Mbps. Superior isolation and anti-interference. Widely used in Security monitoring, conferencing systems and intelligent building.
Features
1.Power: 12VDC;
2.Transmission medium: compatible with twisted pair cable,coaxial cable and even ordinary paired cable;
3.Extend distance: max extend to 1500m;
4.Standard: in line with IEEE802.3XILIE 10/100Base-TX and 100Base-FX Ethernet standard agreement;
5.Design: compact, support MIT specification, installation more easier;
6.Operation: easy installation, plug& play.
| Model | NF-1804T |
| Transmission Medium | COAX, UTP |
| Connection Port | RJ45*4,BNC*1 |
| Transmission Distance/Rate | Cable Length < 400M——92Mbps； Cable Length < 1000M——74Mbps； Cable Length < 2000M——30Mbps； |
| Master/Slave setting | Slave Mode |
| Power Supply | 12V DC,180Ma |
| maximum power consumption | 2.2W |
| Working Temperature | 0°C ~ +50°C |
| Relative Humidity | 5%~95%, no condensing |
| Size | 105*68*32mm |
| Weight | 0.24Kg |

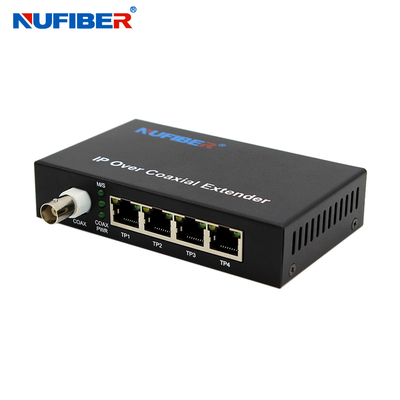

Products Show
Dimensions
Connection Diagram
Factory Show:
FAQ:
Welcome to send us your inquiry,your any question will be response 24/7.OEM:accept,Customization:support.
|
|
