| MOQ: | 1 piece |
| Standard Packaging: | 1 piece cable be packed into 1 box, |
| Delivery Period: | 2~3 days |
| Payment Method: | T/T, Western Union, L/C |
| Supply Capacity: | 100,000 pcs per month |

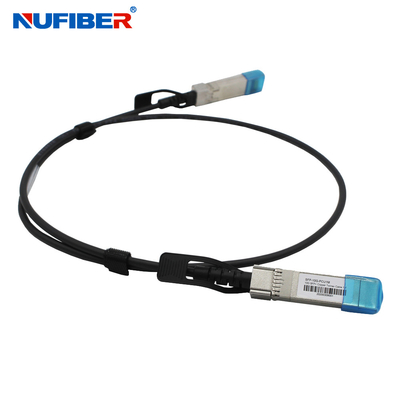

SFP28 to SFP28 25G Direct Attach Cable 25G DAC AWG30 AWG24 Cable Compatible with Data Center
Description
SFP28 Direct Attach Cables are compliant with SFF-8432 and SFF-8402 specifications. Various choices of wire gauge are available from 30 to 26 AWG with various choices of cable length (up to 5m).
The SFP28 passive cable assemblies are high performance, cost effective I/O solutions for 25G Ethernet. SFP28 copper cables allow hardware manufactures to achieve high port density, configurability and utilization at a very low cost and reduced power budget.
Key Features
Application
Technical Parameter
| Parameter | Symbol | Min | Typical | Max | Unit |
| Operating Case Temperature | Standard Tc | 0 | 25 | 70 | °C |
| Storage Temperature | Ts | -40 | 85 | °C | |
| Power Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V |
| Power Dissipation | PD | 0.5 | W | ||
| Relative Humidity | RH | 5 | 95 | % | |
| Data Rate | 25Gb/s | Gbps |
Mechanical Specifications
The connector is compatible with the SFF-8432 specification.
| Length (m) | Cable AWG |
| 1 | 30 |
| 2 | 30 |
| 3 | 30/26 |
| 4 | 26 |
| 5 | 26 |
Ordering Information
| P/N | Speed | Application | MAX Distance | Media | Interface |
| QSFP28-100G-DXM | 103.1Gb/s | 100GBASE-DAC | 5m | Passive cable | QSFP28 to QSFP28 |
| QSFP28-SFP28-DXM | 103.1Gb/s | 100GBASE-DAC | 5m | Passive cable | QSFP28 to 4XSFP28 |
| QSFP-40G-DXM | 41.2Gb/s | 40GBASE-DAC | 5m | Passive cable | QSFP+ to QSFP+ |
| QSFP-4SFP-DXM | 41.2Gb/s | 40GBASE-DAC | 5m | Passive cable | QSFP+ to 4xSFP+ |
| QSFP-40G-DXM | 41.2Gb/s | 40GBASE-DAC | 10m | Active Cable | QSFP+ to QSFP+ |
| QSFP-4SFP-DXM | 41.2Gb/s | 40GBASE-DAC | 10m | Active Cable | QSFP+ to 4xSFP+ |
| SFP28-25G-DXM | 25.78Gb/s | 25GBASE-DAC | 5m | Passive cable | SFP28 to SFP28 |
| SFP-10G-DXM | 10.3Gb/s | 10GBASE-DAC | 10m | Passive cable | SFP+ to SFP+ |
| SFP-10G-DXM | 10.3Gb/s | 10GBASE-DAC | 15m | Active Cable | SFP+ to SFP+ |
Product Show
|
|
